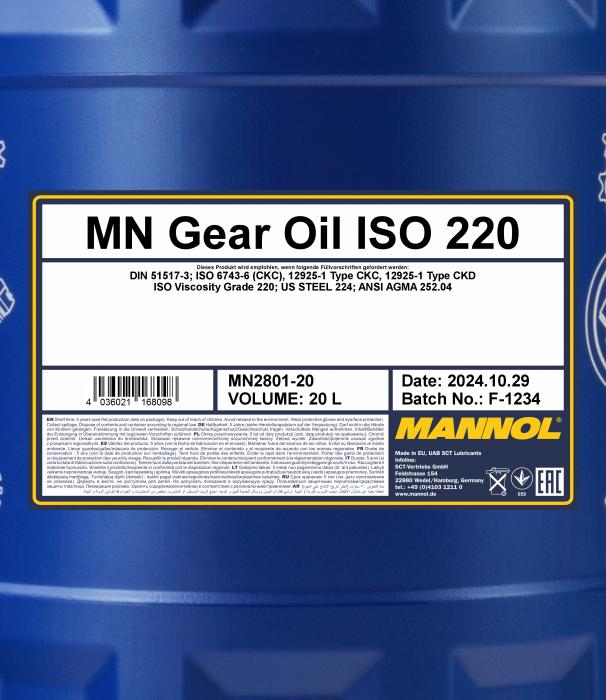

MANNOL Gear Oil ISO 220

Gear oils & transmission fluids > Gear oils

Corresponds with requirements / specifications / products:
ISO Viscosity Grade 220
DIN 51517-3
ISO 6743-6 (CKC)
ISO 12925-1 Type CKC
ISO 12925-1 Type CKD
ANSI AGMA 252.04
US STEEL 224



Mannol Gear Oil ISO 220 is an industrial gear oil that provides excellent protection and oil life in extreme conditions. It offers exceptional oxidation resistance and thermal properties, a high viscosity index (VI) and low-temperature fluidity. Mannol Gear Oil ISO 220 is recommended for enclosed industrial gear drives including steel-on-steel spur, helical and bevel gears.


Product Characteristics:
Characteristics Method Unit Value
Density at 15 °C D 1298 kg/m³ 892
Flash point COC D 92 °C 215
Pour point D 97 °C -32
Viscosity at 100 °C D 445 CSt 20,2
Viscosity at 40 °C D 445 CSt 238
Viscosity index D 2270 97

The data provided is based on standard laboratory tests and given only as a reference. The indicators can vary within the permissible range.



20L (MN2801-20) ,     60L (MN2801-60) ,     208L (MN2801-DR)
